Solar Flat Roof Compactflat Bracket System

Product Introduction:

This is a south-facing aerodynamic flat roof fastening system including pre-assembled PES building protection mat for framed PV modules.

It is available with an inclination 5° to 15°, as well as various row spacings and is available as an alpine version as well.

The COMPACTFLAT as a system solution for flat roofs is available in not only the model for a south-facing solution with  a module inclination of 5° to 15°, but also the model for an east / west-facing solution with a module inclination of 10°.

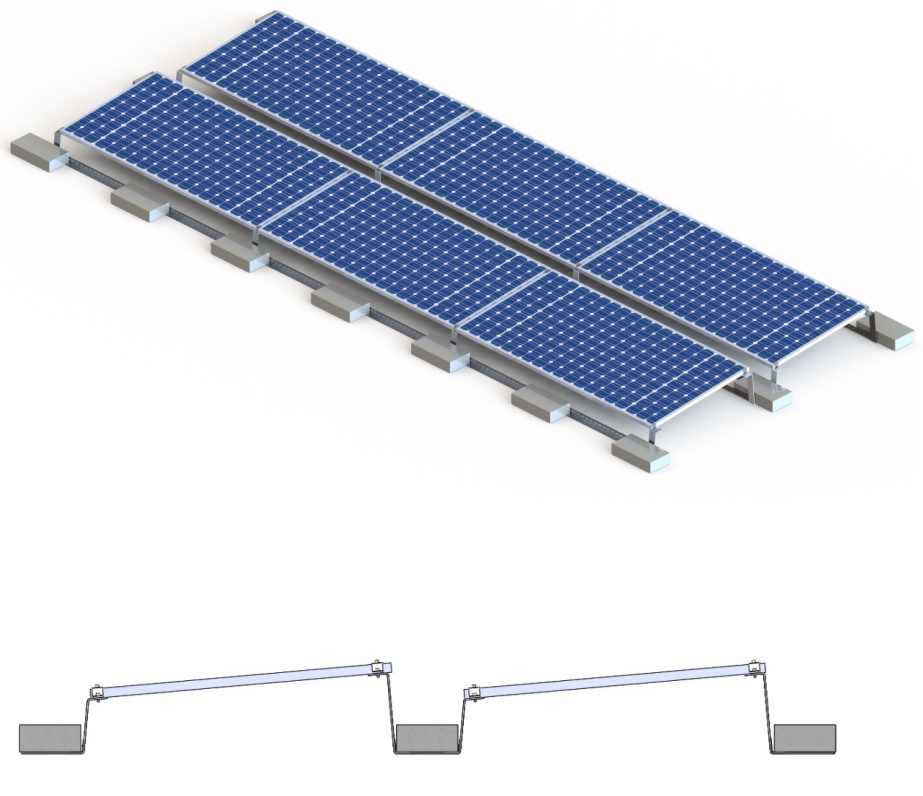

BRACKET SYSTEM --- SOUTH-FACING  5° to 15°

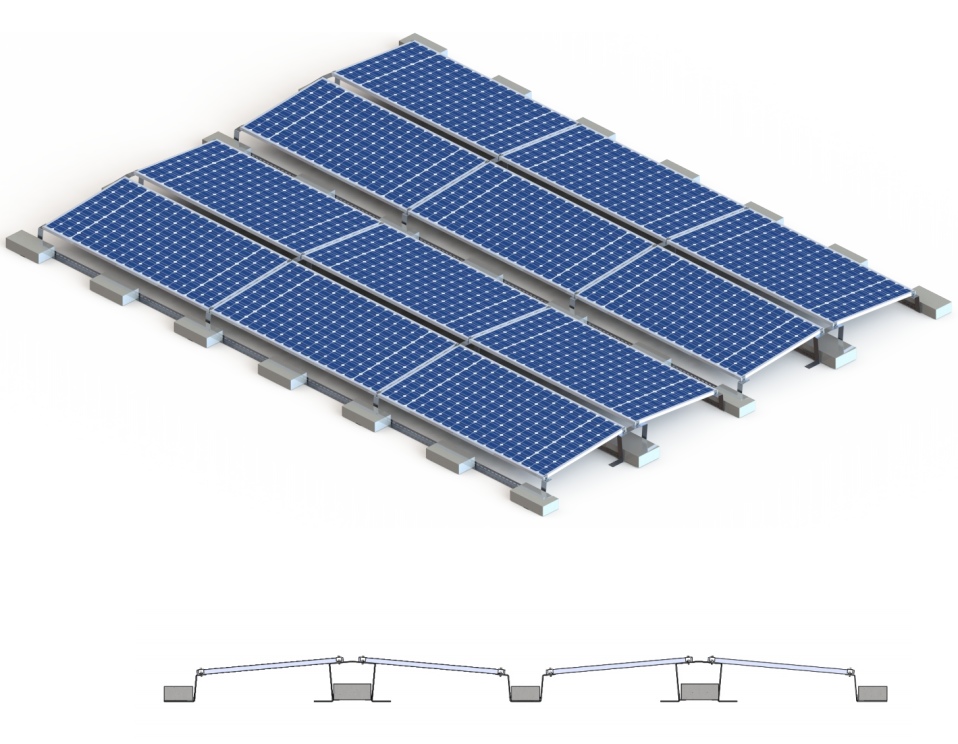

BRACKET SYSTEM --- EAST/WEST-FACING 10°

Our Services:

Warranty: 15 Years

Service life: 25 Years

Samples are available for testing the quality.

OEM & ODM service can be provided. We offer professional customization services.

Our engineers will design the most suitable solar mounting structure solution based on local geology, snow load and wind speed.

Features:

1. It is available with an inclination 5° to 15°, as well as various row spacings and is available as an alpine version as well.

2. The COMPACTFLAT as a system solution for flat roofs is available in not only the model for a south-facing solution with  a module inclination of 5° to 15°, but also the model for an east / west-facing solution with a module inclination of 10°.

Packing:

FAQ:

Q: Are you a factory or trading company?

A: We are a factory specializing in researching & developing, manufacturing, and marketing of solar PV mounting systems, including Roof Mounting Solutions, Ground Mounting (both for Aluminum and Steel) Solutions, Solar Carport and all mounting accessories.

Q: Where is your factory located?

A: Our factory is located in Xiamen city, Fujian province, China.

Q: How does you factory do regarding quality control?

A: Quality is the cornerstone of enterprise survival and development, we set up our quality inspection center lab, which is equipped with advanced inspection devices, such as three-dimension measurement machine, universal microscope, projector, hardness tester, film thickness meter, salt spray test machine, digital height gage / caliper / micrometer.

Q: Can I get some samples?

A: Samples are available for testing the quality.

Q: What information do I need to give you?

A: For the detailed solution and quotation, we need some more details as below:

1. The local maximum wind load and maximum snow load in 10 years.

2. Panel size & layout (length * width * thickness).

3. Panel sloped degree.

4. Height above ground.

5. Concrete column foundation or ground bolt foundation.
